MRL / MR

Passenger Elevator

Larsson's passenger elevators are built for comfort, reliability, and style. Available in both Geared and Gearless configurations, with or without machine room, to suit any building requirement.

Our passenger elevators use advanced VVVF drive technology for smooth, quiet operation. AI Group Control System ensures optimal dispatch and minimum waiting time.

Geared (Manual Door / Auto Door) & Gearless configurations
Capacity: 272 Kgs (4P) to 1630 Kgs (24P)
Speed: 1.0 & 1.5 mps (meters per second)
Standard Car Height: 2200 mm
Door types: ACO (Automatic Centre Opening) & ATO
AI Group Control System for optimal efficiency
VVVF drive for smooth, quiet operation
Energy feedback technology saves up to 30% power

Request Quote

Space-Saving

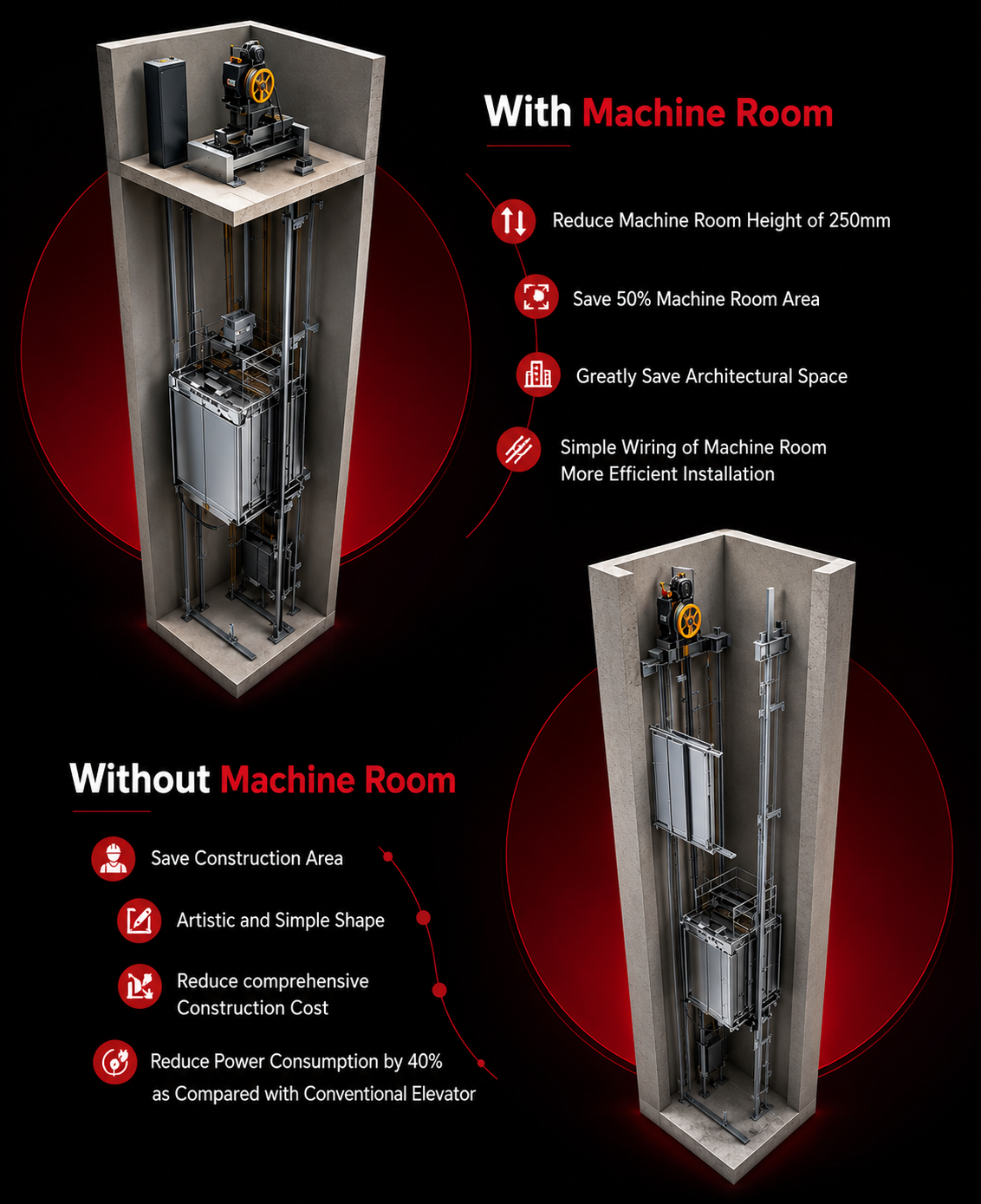

MRL / MR Configuration

Our Machine Room Less (MRL) and Machine Room (MR) elevator configurations offer space-saving designs without compromising performance.

With Machine Room (MR)

Reduce Machine Room Height by 250mm
Save 50% Machine Room Area
Save Architectural Space
Simple Wiring, Efficient Installation

Without Machine Room (MRL)

Save Construction Area
Artistic and Simple Shape
Reduce Construction Cost
Reduce Power Consumption by 40%

MRL Gearless Lifts (Standard Specifications)

Rated Load	Car Size (W×D)	Shaft Size (W×D)	Door Size	Door Type
272 Kgs (4P)	900×1000	1550×1250	700×2000	ACO
340 Kgs (5P)	850×1000	1550×1350	700×2000	ACO
408 Kgs (6P)	1000×1100	1600×1450	700×2000	ACO
544 Kgs (8P)	1050×1300	1700×1600	800×2000	ACO
680 Kgs (10P)	1350×1300	2000×1800	800×2000	ATO
884 Kgs (13P)	1200×1800	1900×2100	900×2000	ACO
1020 Kgs (15P)	1400×1750	1900×2050	900×2000	ACO
1360 Kgs (20P)	1600×1900	2400×2250	1000×2000	ACO
1630 Kgs (24P)	1500×2400	2300×2900	1200×2000	ATO

All dimensions in mm. Speed: 1.0 & 1.5 mps.

Panoramic

Capsule Elevator

Larsson Capsule Elevators combine architectural elegance with state-of-the-art engineering. These panoramic elevators enhance building aesthetics while providing smooth, reliable vertical transportation.

Available in multiple shape options (Round, Half-Round, Oval) and interior finishes to complement any modern building design.

Technical Dimensions — Option A (Round)

Persons	Kgs	A	B	J	G	Entrance
10	680	1100	1300	1400	650	800
13	884	1200	1400	1550	700	900
16	1088	1300	1500	1700	750	1000

Multiple shape options: Round, Oval, Half-Round
Glass panoramic view for architectural impact
Available in stainless steel, gold, wood finishes
Capacity: 10–16 persons (680–1088 Kgs)
Machine Room and Machine Roomless options

Request Quote

Healthcare

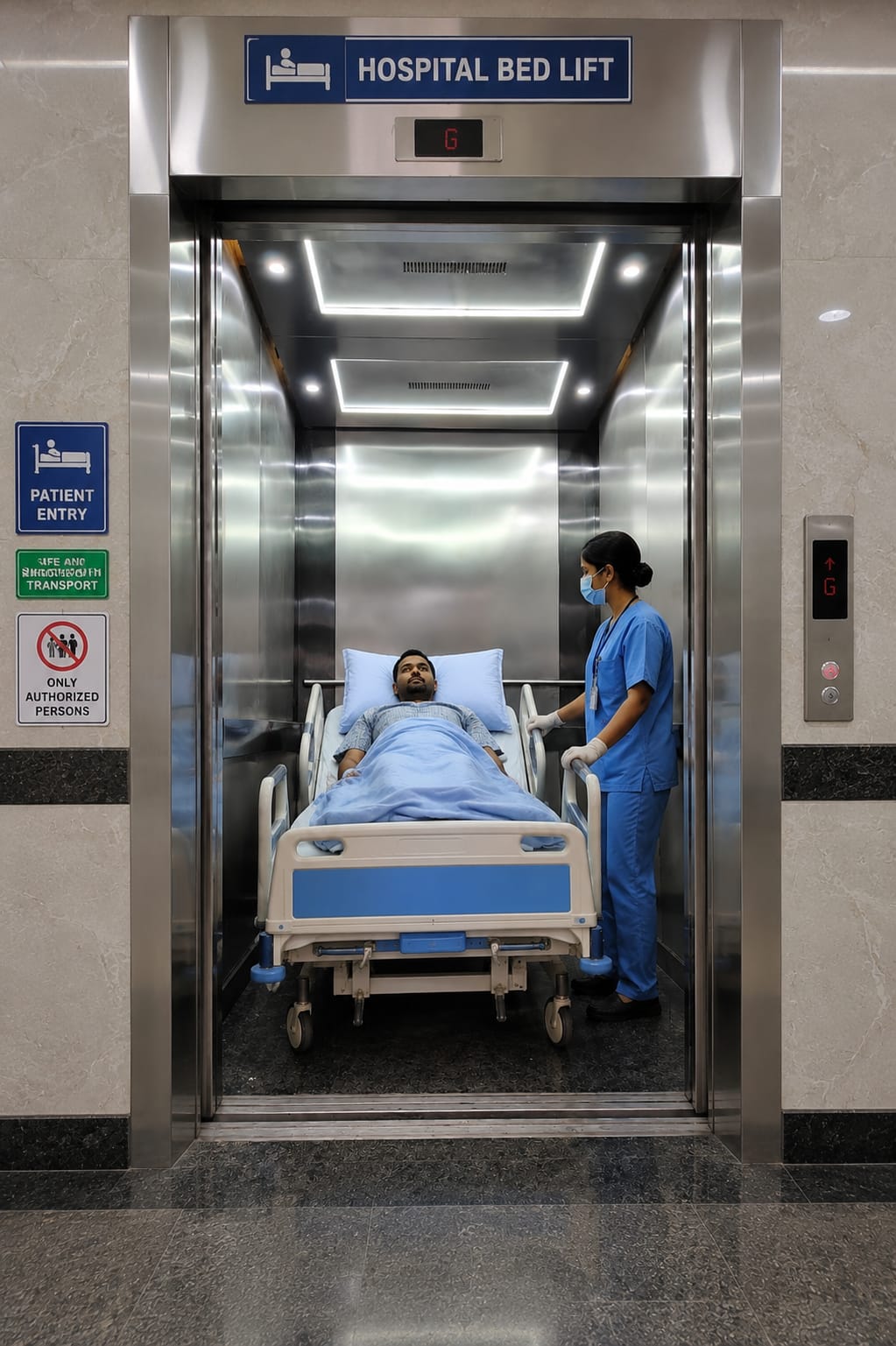

Hospital Elevator

Specially designed for healthcare environments, Larsson Hospital Elevators provide safe, smooth and spacious transportation for patients, medical staff, stretchers and wheelchairs.

Wide car dimensions accommodate hospital beds and medical equipment. Hygienic, easy-to-clean interior finishes with anti-bacterial properties.

Technical Specifications

Rated Load	Speed (mps)	Car Size (W×D)	Shaft Size (W×D)	Door Size	Door Type
884 Kgs (13P)	0.5/1.0/1.5	1000×2200	1700×2650	800×2000 / 900×2000	ACO / ATO
1020 Kgs (15P)	0.5/1.0/1.5	1000×2400	1800×3000	800×2000 / 900×2000	ACO / ATO
1360 Kgs (20P)	0.5/1.0/1.5	1300×2400	2200×3000	1000×2000 / 1200×2000	ACO / ATO
1768 Kgs (26P)	0.5/1.0/1.5	1600×2400	2500×3000	1100×2000 / 1400×2000	ACO / ATO

Wide car accommodates hospital beds and stretchers
Smooth, vibration-free operation for patient comfort
Emergency power operation capability
Anti-bacterial interior finish options
Overload protection and intercom system

Residential

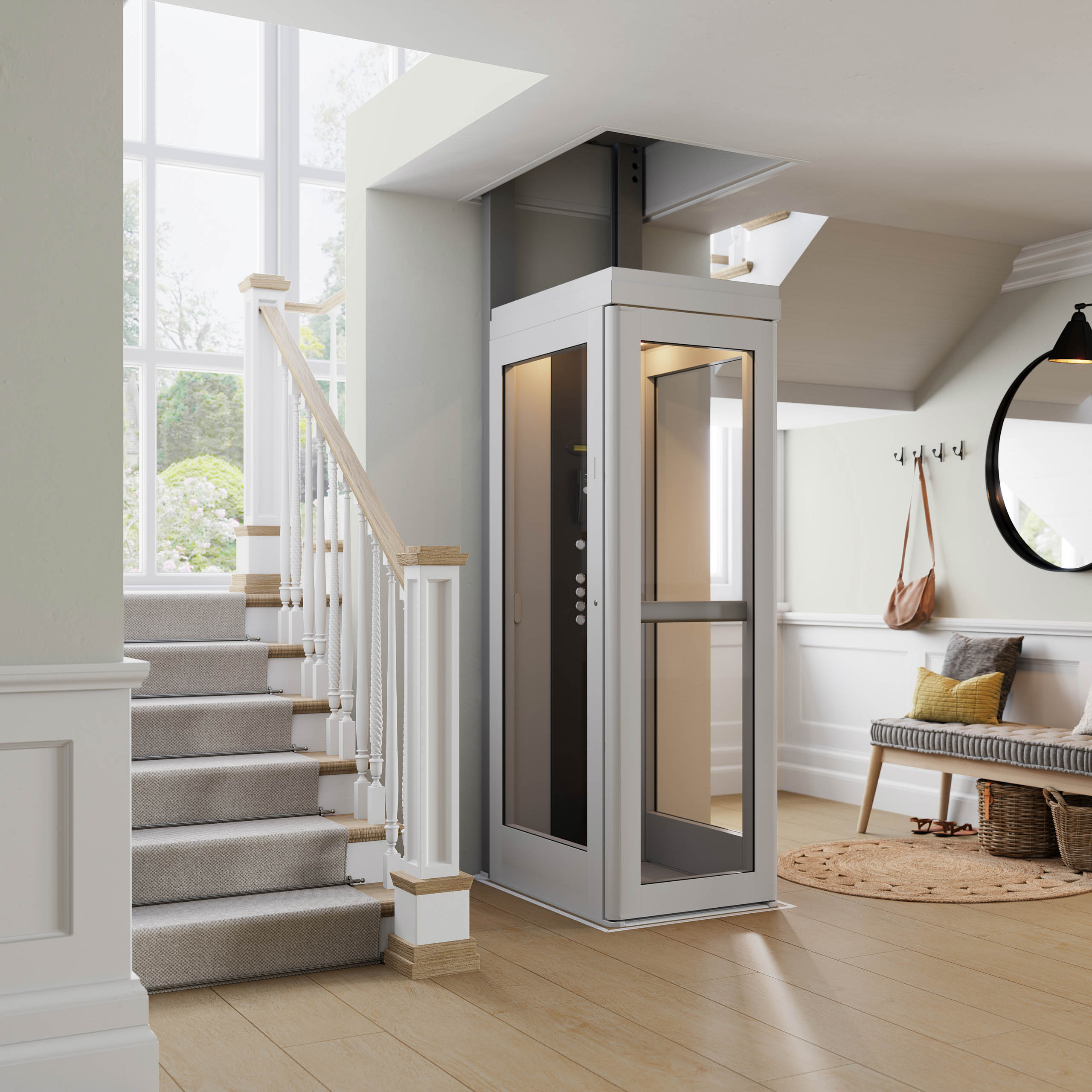

Home Elevator

Larsson Home Elevators add elegance, convenience and value to your home. Available in Hydraulic Drive and In-Line Drive systems to suit different architectural requirements.

Hydraulic Drive System

Capacity: 1000 lbs
Speed: 40 ft/min (0.2 m/sec)
Up to 6 stops, max 6 landing doors
Max travel: 42' 6" (12950 mm)
Emergency manual lowering
Slack cable safety device

In-Line Drive System

Capacity: 1000 lbs
Speed: 40 ft/min (0.2 m/sec)
Up to 6 stops, max 8 landing doors
Max travel: 50' (15240 mm)
Variable frequency drive
UPS for power outage protection

Pit depth: 8" (200 mm) for swing doors
Emergency light and alarm
Certified electrical control system
Hoisway door interlocks for safety
Mechanically integrated fail-safe brake system

Request Quote

Industrial

Goods / Freight Elevator

Larsson Goods Elevators are designed for heavy-duty industrial and commercial applications. Robust construction ensures reliable operation under demanding conditions.

General Type

Accurate landing & smooth operation
40% energy saving vs AC control
Computer-controlled functions
Self-checking built-in system

Hydraulic Type

Smaller installation space
Machine room flexibility
Auto-lower on power failure
Enhanced safety device

Capacity & Dimensions

Capacity (Kg)	Car A×B	Lift Well C×D	Wall Opening	Speed (m/s)
500	1200×1200	1650×1650	800×2000	0.35
1000	1700×1600	2400×1900	1200×2000	0.35
1500	2000×2000	2700×2300	1500×2000	0.35
2000	2200×2500	2900×2800	1000×2000	0.35
3000	2500×3200	3300×3500	1600×2000	0.35
4000	2500×4000	3400×4300	2000×2000	0.35

Moving Walkways

Escalators & Travalators

Larsson Escalators and Travalators are designed for high-traffic commercial environments including malls, airports, metro stations and transit hubs. Built with comprehensive safety systems for worry-free operation.

Section Dimensions (mm)

Type	S800	S1000	S1200
W1 (Inner Width)	608	807	1007
W2	837	1037	1237
W3 (Outer Width)	1130	1330	1530
W4	1100	1300	1500
W5	1200	1400	1600

Safety Features

Handrail Light for visual safety guidance
Step Lights — fluorescence between steps
Skirt Panel Brush — prevents clothing entrapment
Direction Indicator Light at entry
Emergency Stop Button for immediate halt
Step Speed Testing Device
Automatic Start/Stop with infrared sensors
Emergency Brake Device & Drive Chain Breakage Protection

Request Quote

Our Products

Passenger Elevator

MRL / MR Configuration

With Machine Room (MR)

Without Machine Room (MRL)

MRL Gearless Lifts (Standard Specifications)

Capsule Elevator

Technical Dimensions — Option A (Round)

Hospital Elevator

Technical Specifications

Home Elevator

Hydraulic Drive System

In-Line Drive System

Goods / Freight Elevator

General Type

Hydraulic Type

Capacity & Dimensions

Escalators & Travalators

Section Dimensions (mm)

Safety Features
